High Performance

Wireless motion sensors for recording or streaming synchronized IMU data at up to 200 Hz.

High Precision

Advanced on-chip sensor fusion at 1666 Hz ensures reliable and accurate data.

Mobile App

Simple and efficient recording of IMU data, video, and internal device sensors.

SDK Integration

Python SDK and BLE protocol documentation for integration in custom applications.

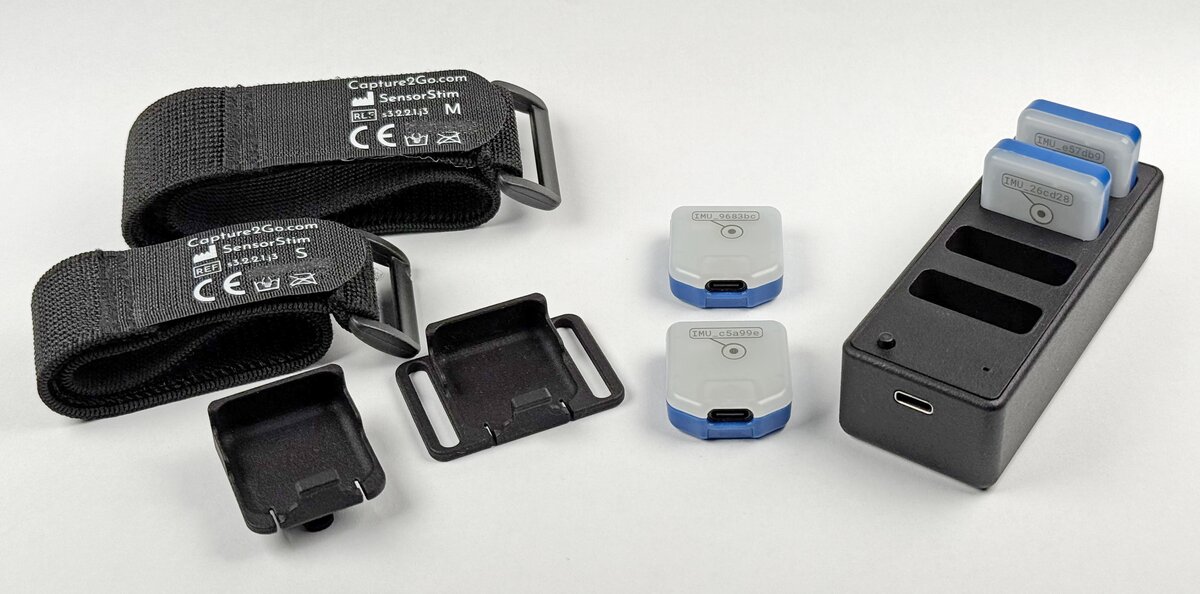

Capture2Go IMU and App

Capture2Go – Simple. Precise. Mobile.

Capture2Go combines small and lightweight sensors with a powerful mobile app to effortlessly record movement data.

Wireless IMUs

Lightweight battery-powered motion sensors.

Docking Station

Charges up to 4 sensors.

Accessories

Straps, strap holders, and shoe clips.

Mobile App

Simple but powerful data recording tool.

Ready to get started?

Download the app for your device or dive into the documentation to learn more.

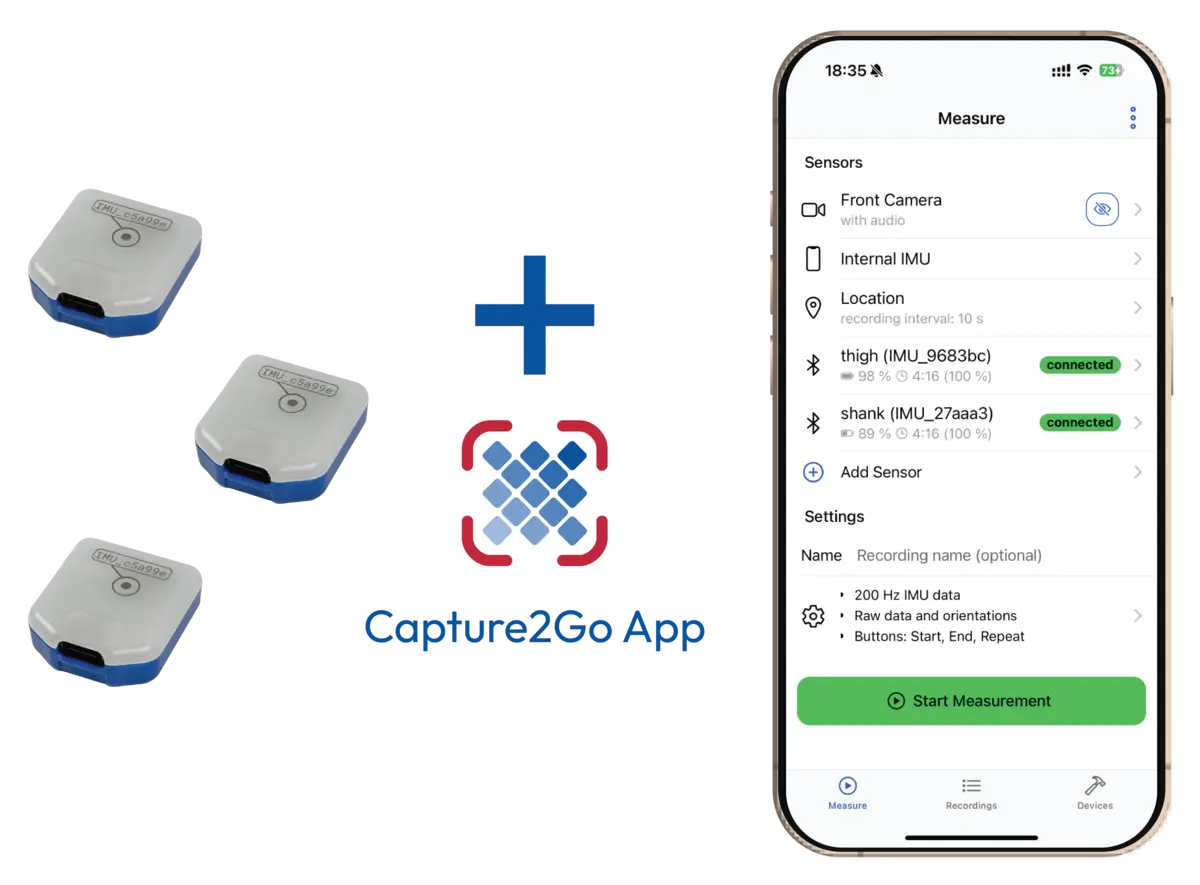

Capture2Go App in use

SDK & Protocol Documentation

Integrate Capture2Go sensors into your own applications using our Python SDK or the BLE protocol documentation.

Python SDK SDK Documentation
pip install capture2go

Experience Capture2Go in Action

Products

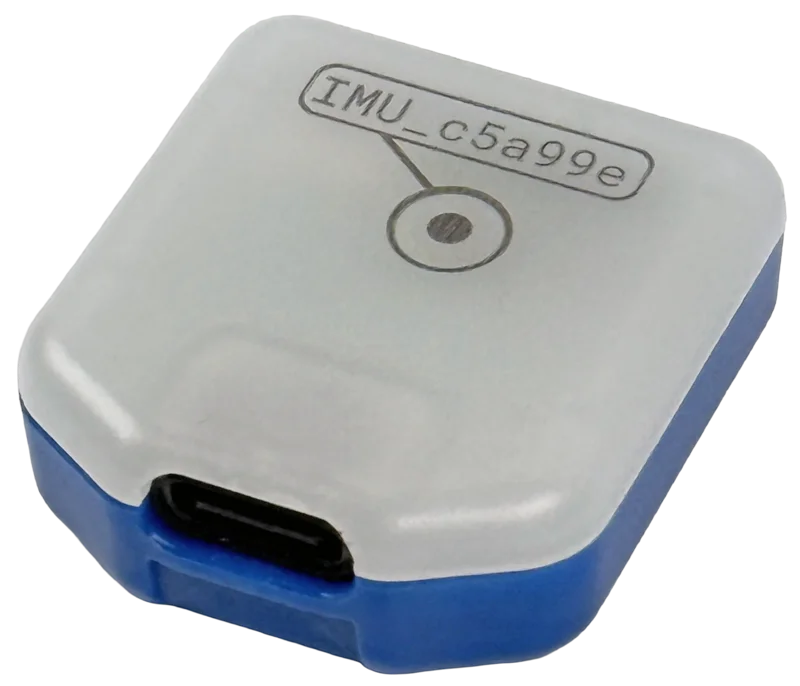

Capture2Go Inertial Measurement Unit (IMU)
  • Dimensions: 32×29×11 mm, Weight: 12 g
  • Output of raw data and orientations with up to 200 Hz
  • 3D gyroscope & accelerometer
    • acceleration: 16 bit, range ± 16 g
    • rate of turn: 16 bit, range ± 2000 °/s
    • internal sampling rate: 1666 Hz
  • 3D magnetometer
    • 16 bit, range ± 49 Gauss
    • internal sampling rate 50 Hz
  • 200 mAh LiPo battery, up to 10 hours (streaming/recording)
  • Memory: 64 MB for recording
    • 4 hours full data at 200 Hz
    • 17 hours full data at 50 Hz
  • Connectivity: Bluetooth Low Energy (BLE) 4.2 and USB-C
  • Streaming via BLE or USB-C
  • Synchronization of multiple sensors (<1 ms accuracy)
  • Pre-processing and on-chip sensor fusion at 1666 Hz
  • Innovative VQF orientation estimation on the IMU
  • Transport mode: Prevents accidental wake-up and battery drain
  • Python SDK (Mac OS, Windows, Linux) and BLE protocol documentation

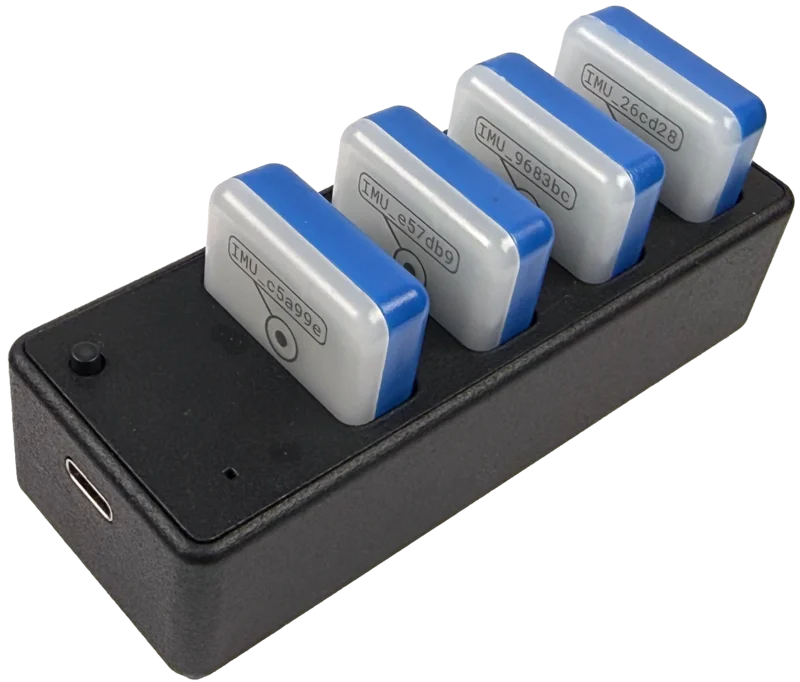

Capture2Go Docking Station
  • Charging of up to four sensors
  • Dimensions: 101×38×27 mm
  • Weight: 64 g
  • Connectivity: USB-C, Hi-Speed
  • Button to put sensors into transport mode
  • Supports data transfer from sensors via USB

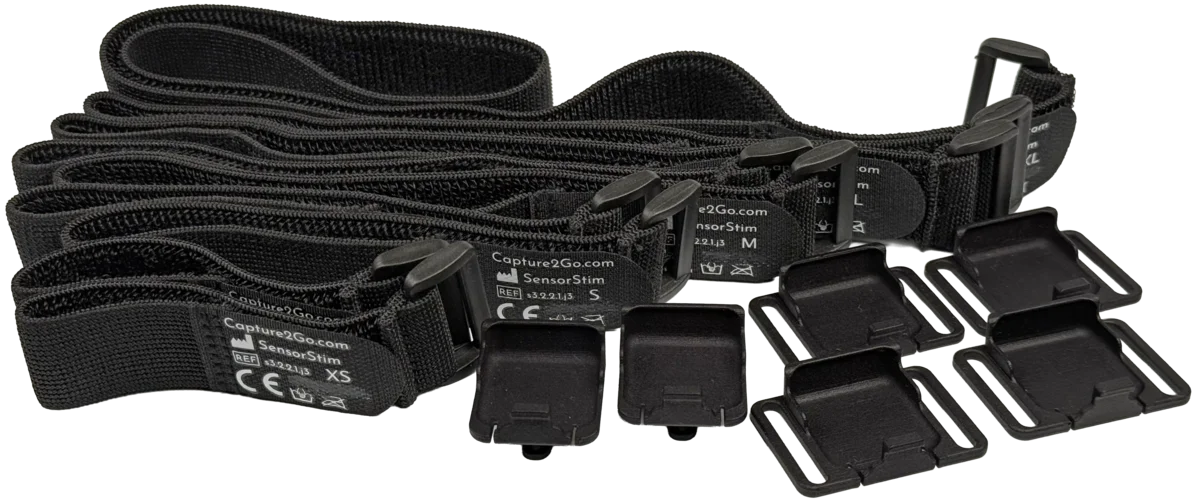

Capture2Go Accessories
  • Straps in sizes XS, S, M, L, and XL for placing the sensors on the human body
  • Strap holders for easy mounting of the sensors on the straps
  • Shoe clip for attaching the sensor to shoes

Quotation Request

If you are interested in buying Capture2Go, please request a quote by e-mail. Choose quantities and enter contact details to generate an e-mail draft with all required information.

Capture2Go is specifically designed solely for the purposes of research and development and is only made available on a business-to-business basis.
